Product Details
＋
General Information
Brand
Wiha Tools
Number of Pieces
24
Packaging
Retail
UPC
084705702896
California Residents
Part Number
70289
Product Type
Impact Bit Set
Physical Characteristics
Length
8.25"
Width
3.88"
Height
1.25"
Weight
0.24 kg
0.53 lb
Color
Blue & Metallic
Material
CVM Premium Quality Tool Steel (Chrome Vanadium Molybdenum)
Durability
61 HRC
Details
Tip Type
Phillips, Square, TORX
Features
Energy-absorbing Torsion Zone for 120 times performance over Wiha standard bits
Computer-controlled heat treatment for 120 times service-life over Wiha standard bits
Tuned torsion zone for maximum flex and reduced tip stress
Exact fit precision machined Phillips tips for reduced cam-out
Fit with a standard 1/4 inch hex drive
CVM premium quality tool steel for strength and durability
Impact-rated for power tool applications
Minimum hardness tolerance of 61 RHC /- 1
Computer-controlled heat treatment for 120 times service-life over Wiha standard bits
Tuned torsion zone for maximum flex and reduced tip stress
Exact fit precision machined Phillips tips for reduced cam-out
Fit with a standard 1/4 inch hex drive
CVM premium quality tool steel for strength and durability
Impact-rated for power tool applications
Minimum hardness tolerance of 61 RHC /- 1
Size
Phillips:
(1) #1 x 1", (3) #2 x 1", (1) #3 x 1", (1) #1 x 2", (2) #2 x 2", (1) #3 x 2"
Square:
(1) #2 x 1", (1) #2 x 2"
TORX:
(1) T15 x 1", (1) T20 x 1", (2) T25 x 1", (1) T30 x 1", (1) T40 x 1", (1) T15 x 2", (1) T20 x 2", (2) T25 x 2", (1) T30 x 2", (1) T40 x 2"

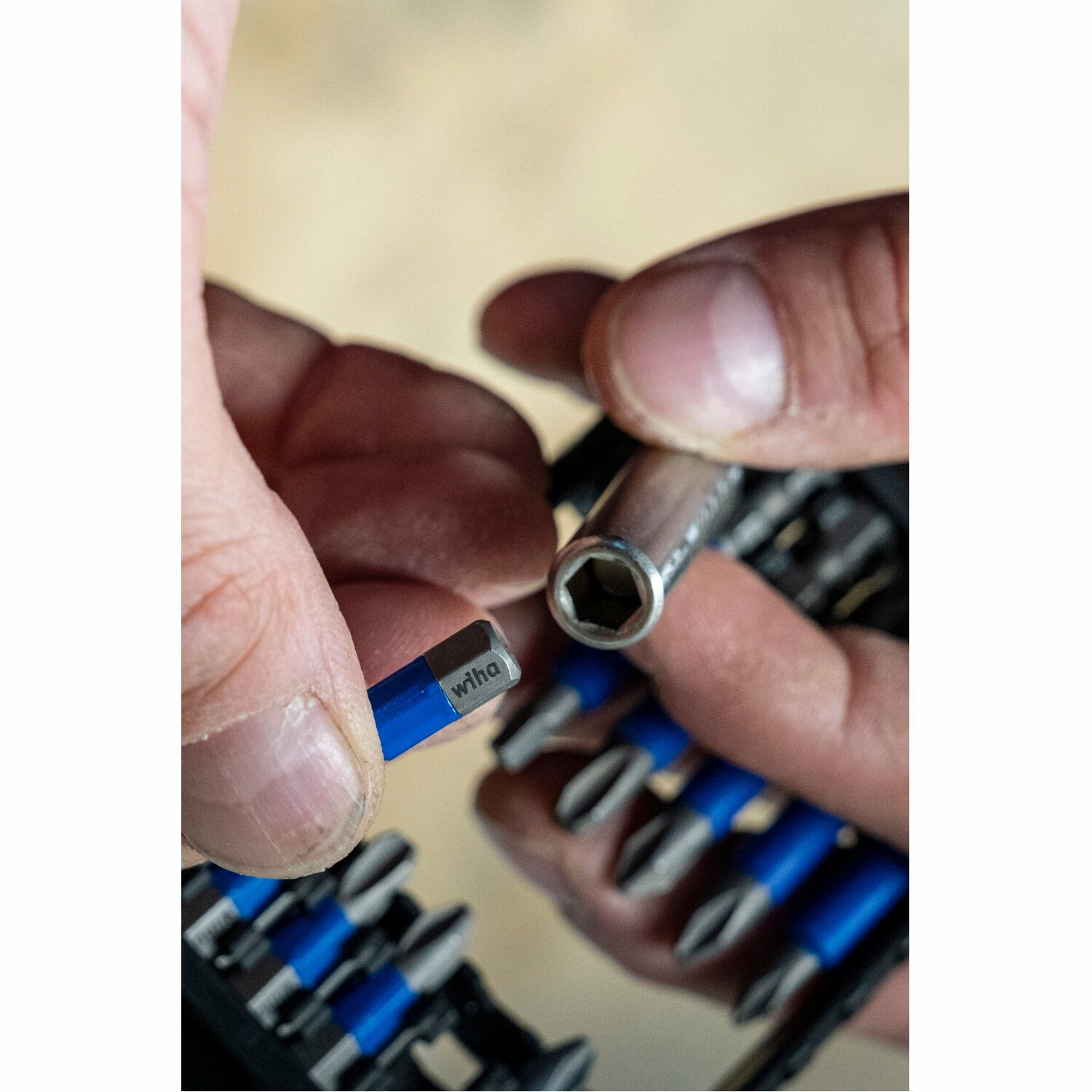

1/4" Bit Holder
(1) #1 x 1", (3) #2 x 1", (1) #3 x 1", (1) #1 x 2", (2) #2 x 2", (1) #3 x 2"
Square:
(1) #2 x 1", (1) #2 x 2"
TORX:
(1) T15 x 1", (1) T20 x 1", (2) T25 x 1", (1) T30 x 1", (1) T40 x 1", (1) T15 x 2", (1) T20 x 2", (2) T25 x 2", (1) T30 x 2", (1) T40 x 2"
1/4" Bit Holder
Tip Style
TerminatorBlue
Blade Length
1" & 2"
Drive Connector Size
1/4" Hex
