Product Details
＋
General Information
Brand
Wera
Part Number
05004285001
Product Type
Ratchet and Socket Set
Number of Pieces
27
Packaging
Retail
Country of Origin
Czech Republic
UPC
4013288227591
California Residents
Physical Characteristics
Length
8.07" / 205 mm
Width
5.91" / 150 mm
Height
2.17" / 55 mm
Weight
1.16 kg
2.56 lb
Color
Black / Green / Color-Coded
Material
Chrome Vanadium Steel
Details
Tip Type
Square / Hex / Phillips / TORX / Slotted / Hex-Plus
Size
1x 8009 Zyklop Pocket: 3/8"" x 1/4"" x 133 mm
1x 8794 SB Zyklop extension with free-turning sleeve, short, 3/8"": 3/8"" x 125 mm
1x 893/1/1 Universal Bit Holder: 1/4"" x 75 mm
12x 8790 HMB Zyklop 3/8"" socket: 1/4""x29 mm, 5/16""x29 mm, 3/8""x29 mm, 7/16""x29 mm, 1/2""x29 mm, 9/16""x29 mm, 8x29 mm, 9x29 mm, 10x29 mm, 12x29 mm, 14x29 mm, 16x30 mm
2x 851/1 BTZ bits: PH 1x25 mm, PH 2x25 mm
2x 867/1 BTZ TORX bits: TX 10x25 mm, TX 15x25 mm
2x 800/1 BTZ bits: 0.8x5.5x25 mm, 1.2x6.5x25 mm
2x 840/1 BTZ bits: 4x25 mm, 6x25 mm
2x 840/1 Z bits: 3/16""x25 mm, 1/4""x25 mm
2x 868/1 Z Square-Plus bits: # 1x25 mm, # 2x25 mm
1x Hook and Loop Fastener Strip 120: 120 x 50 mm"
1x 8794 SB Zyklop extension with free-turning sleeve, short, 3/8"": 3/8"" x 125 mm
1x 893/1/1 Universal Bit Holder: 1/4"" x 75 mm
12x 8790 HMB Zyklop 3/8"" socket: 1/4""x29 mm, 5/16""x29 mm, 3/8""x29 mm, 7/16""x29 mm, 1/2""x29 mm, 9/16""x29 mm, 8x29 mm, 9x29 mm, 10x29 mm, 12x29 mm, 14x29 mm, 16x30 mm
2x 851/1 BTZ bits: PH 1x25 mm, PH 2x25 mm
2x 867/1 BTZ TORX bits: TX 10x25 mm, TX 15x25 mm
2x 800/1 BTZ bits: 0.8x5.5x25 mm, 1.2x6.5x25 mm
2x 840/1 BTZ bits: 4x25 mm, 6x25 mm
2x 840/1 Z bits: 3/16""x25 mm, 1/4""x25 mm
2x 868/1 Z Square-Plus bits: # 1x25 mm, # 2x25 mm
1x Hook and Loop Fastener Strip 120: 120 x 50 mm"
Drive Connector Size
1/4" & 3/8"
Grip Type
Ergonomic
Features

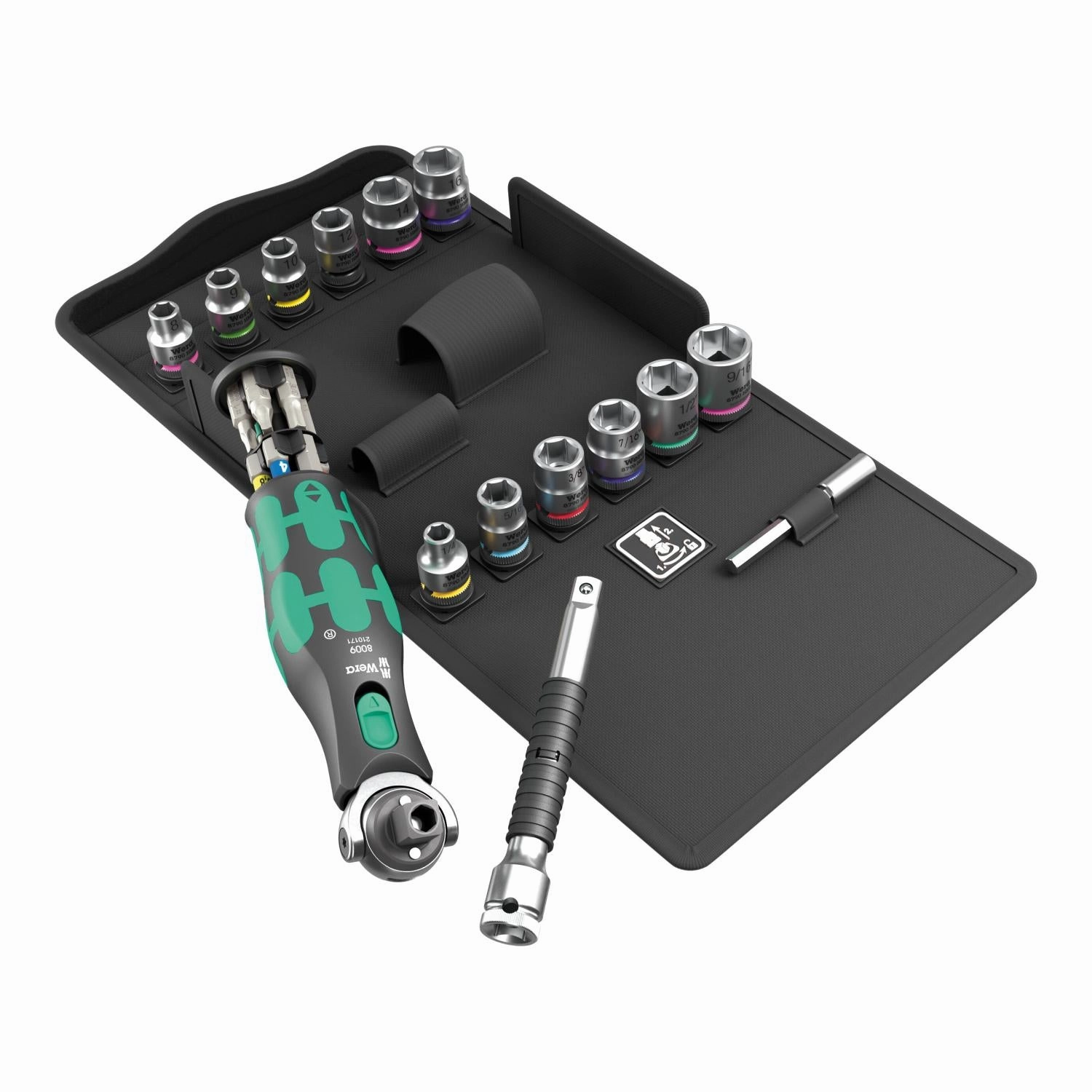

27-piece Zyklop Pocket set with bits, sockets, universal holder and extension
Compact Zyklop ratchet with integrated bit magazine
The magnetic direct mounting simultaneously turns the 3/8" ratchet into a bit ratchet screwdriver with 1/4" bit mounting
Freely pivoting ratchet head with 5 predefined locking positions
Fine tooth reversible ratchet (72 teeth) for a low return angle of only 5
Captive and freely swivelling bit magazine for easy removal and secure storage of the
bits
Universal holder with stainless steel sleeve and strong permanent magnet, can be used as extension
Space-saving and safe storage in a textile box, which can also be docked onto the Wera 2go system
Compact Zyklop ratchet with integrated bit magazine
The magnetic direct mounting simultaneously turns the 3/8" ratchet into a bit ratchet screwdriver with 1/4" bit mounting
Freely pivoting ratchet head with 5 predefined locking positions
Fine tooth reversible ratchet (72 teeth) for a low return angle of only 5
Captive and freely swivelling bit magazine for easy removal and secure storage of the
bits
Universal holder with stainless steel sleeve and strong permanent magnet, can be used as extension
Space-saving and safe storage in a textile box, which can also be docked onto the Wera 2go system
