Made in USA

• Starrett Model No. 196B1

• .200" Range, 0-100 Dial Face, .001" Graduations

• Rugged, with few moving parts
• Shank diameter is 1/4" (6.3mm)
• Dial only

•

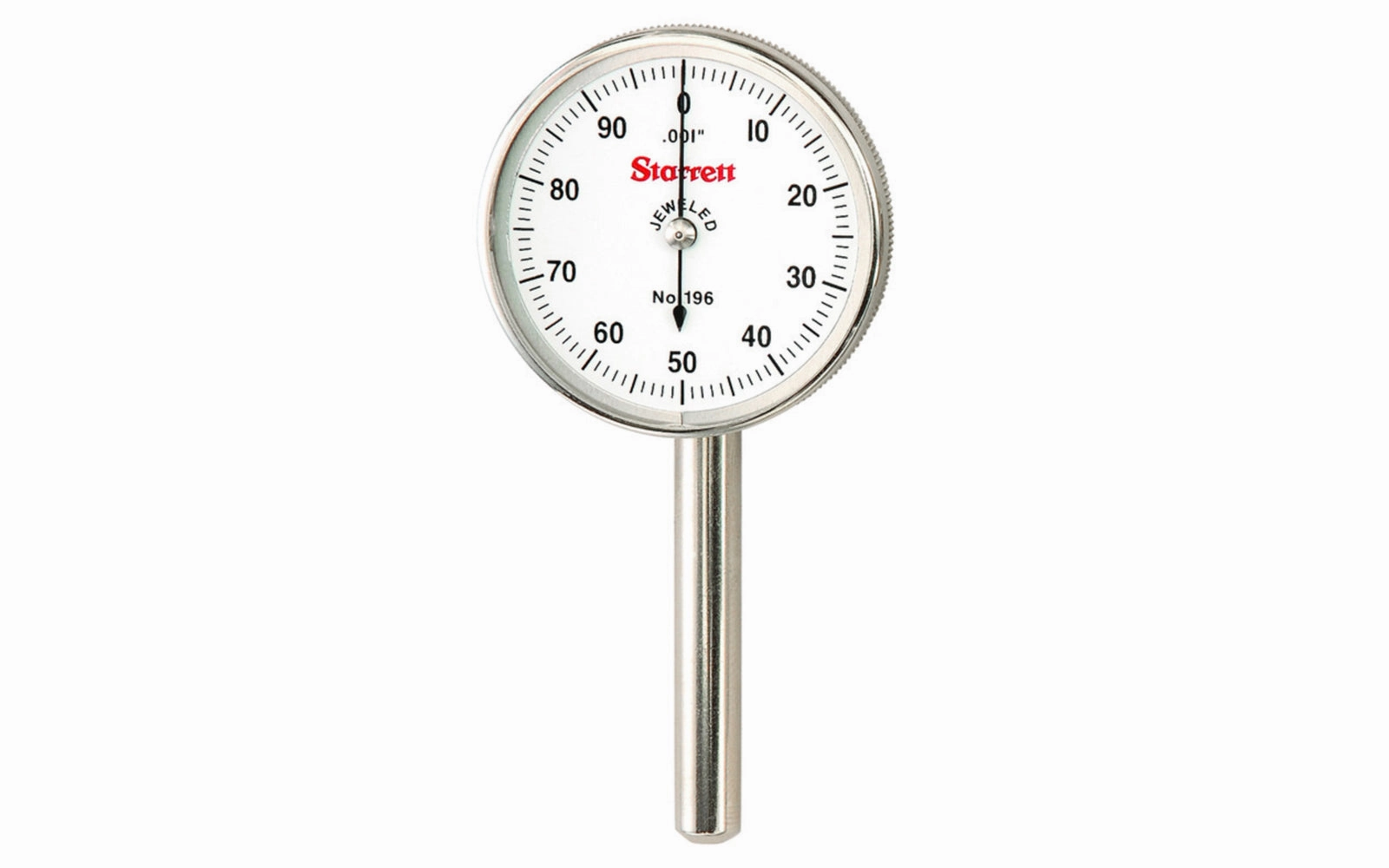

  The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. Made in USA.


• Product	Model #
  Starrett Universal Back Plunger Dial Indicator - 196B1	196B1 | EDP #: 50699
