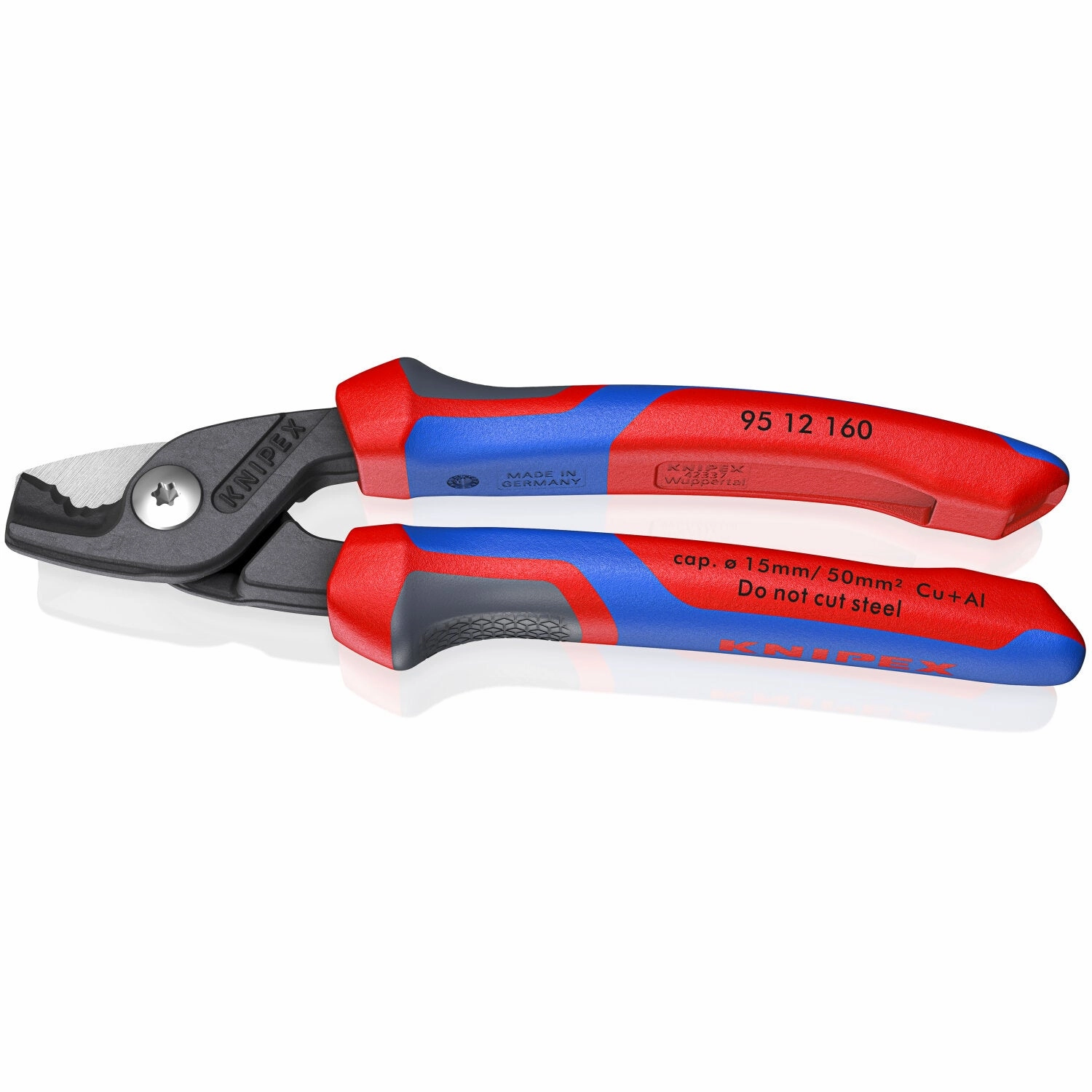

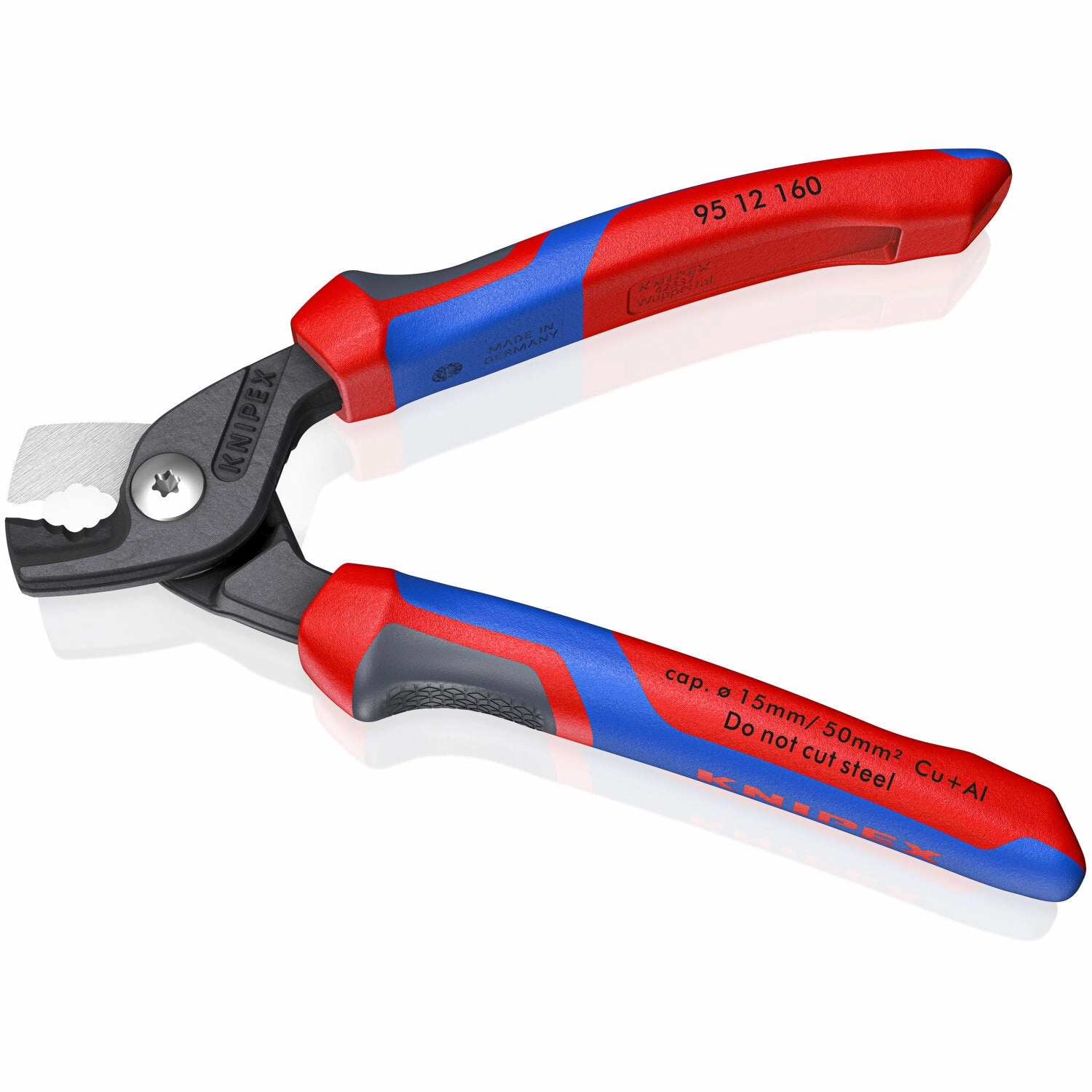

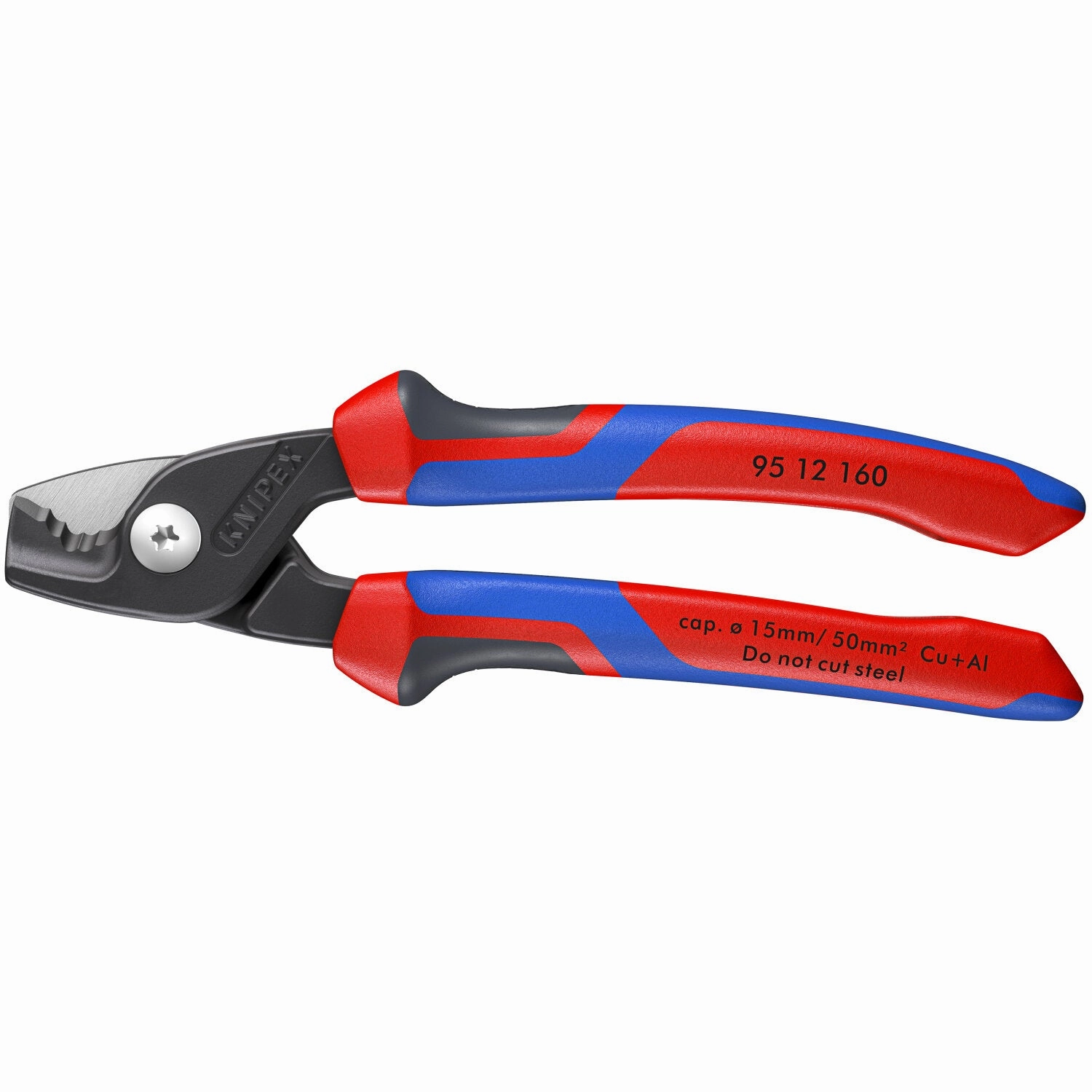

Product Details
＋
General Information
Brand
KNIPEX
Packaging
Retail
Country of Origin
Germany
UPC
843221027711
California Residents
Part Number
95 12 160
Product Type
Cable Shear
Physical Characteristics
Length
6 1/4"
Width
2 1/8"
Height
3/4"
Weight
0.24 kg
0.53 lb
Color
Blue, Red & Gray
Finish
Black-Oxide Finish & Burnished
Material
High-Grade Tool Steel
Details
Features

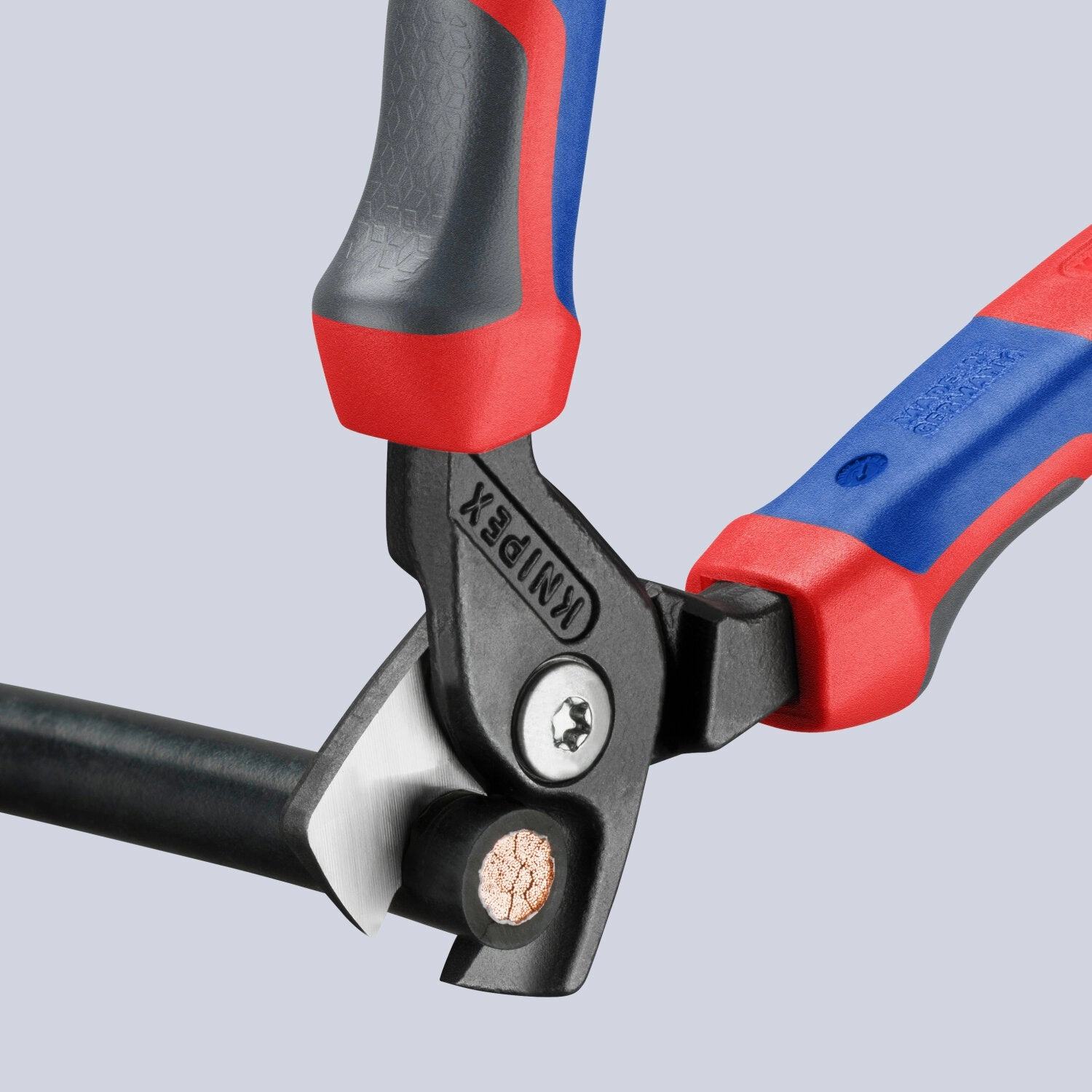

Cable cutting made easy: innovative step cutting separates and cuts one by one
Small, light, strong: comfortable cutting without crushing and just 6 1/4" in length

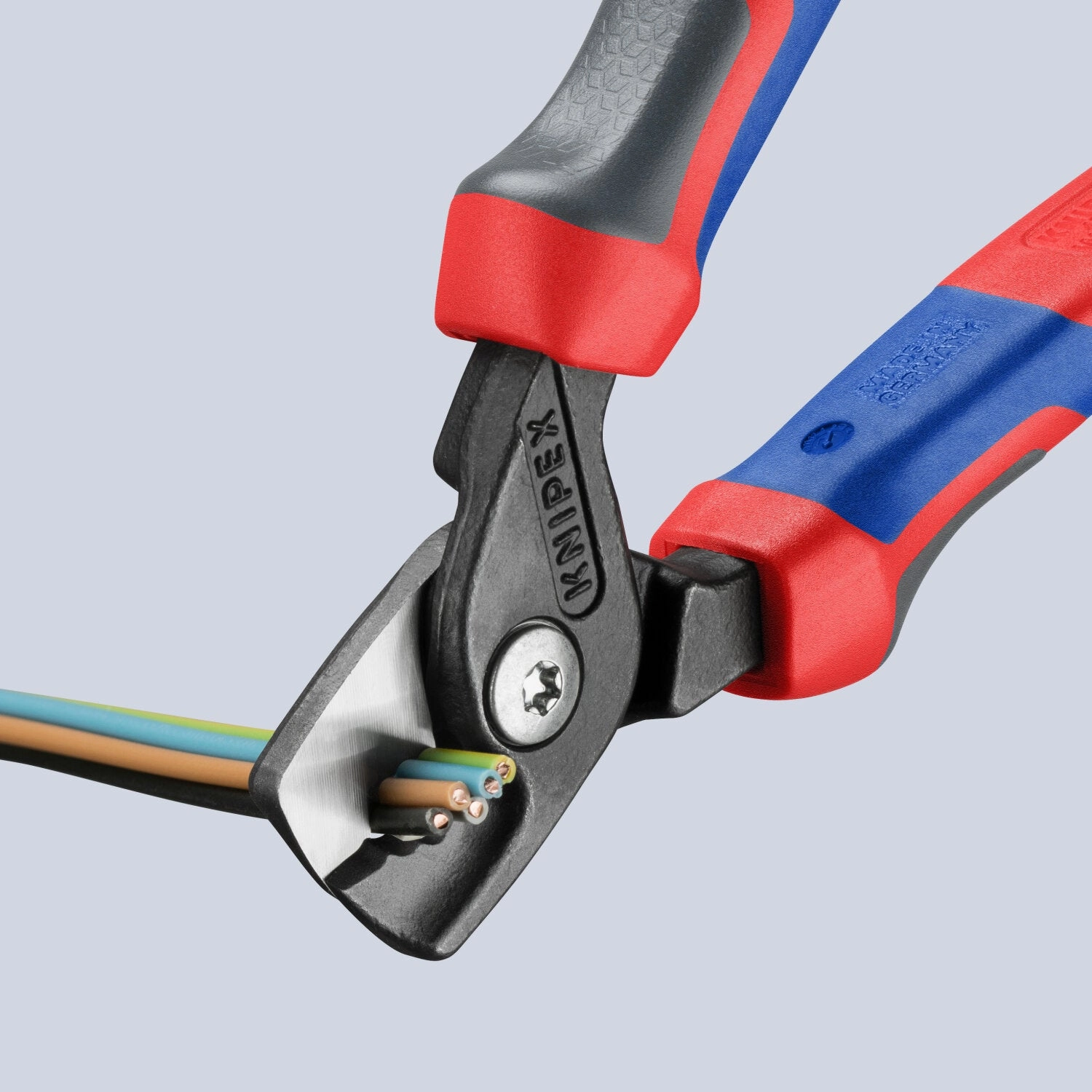

The cutting edge gradations cut wires one after the other making cutting 40% easier than with standard cable shears of the same length

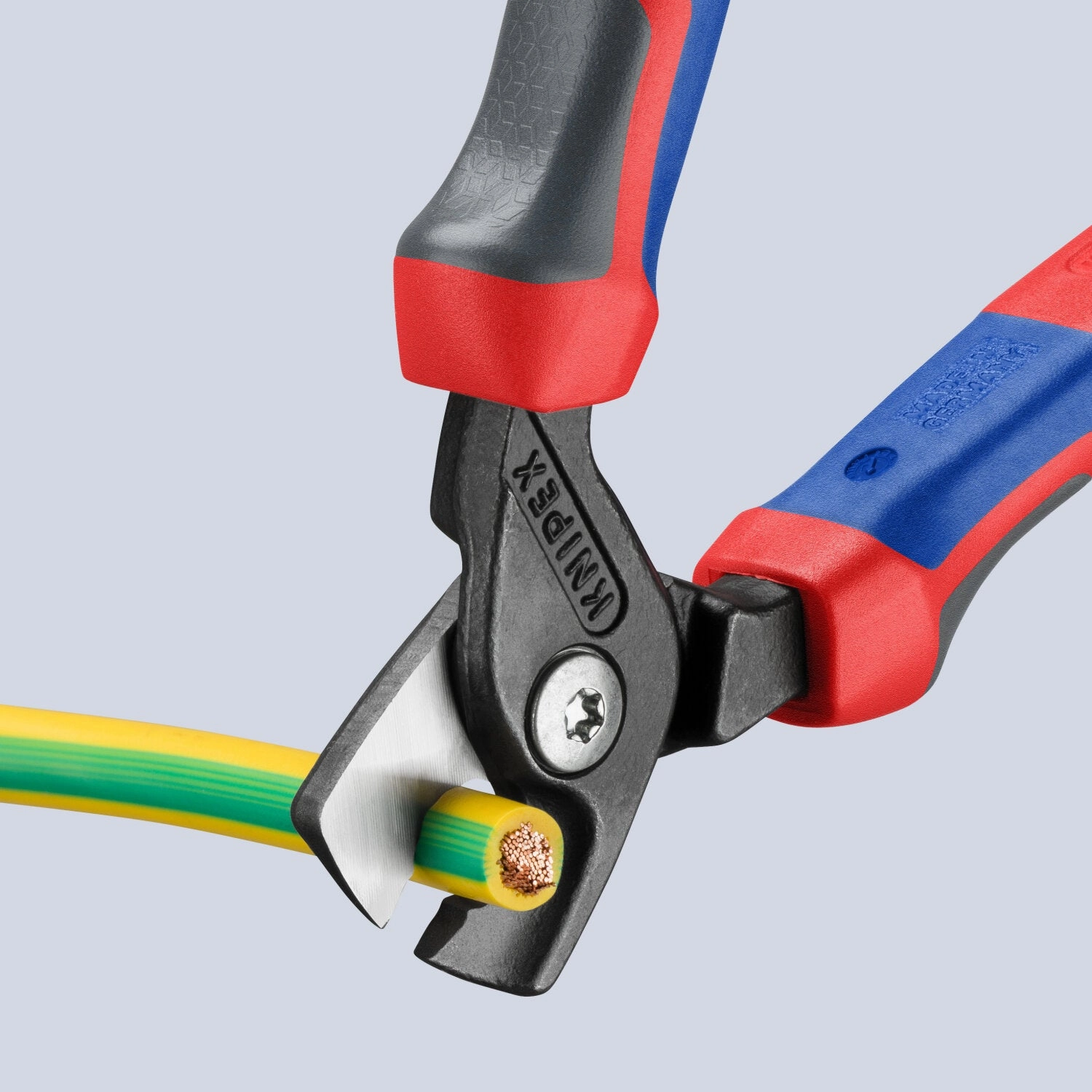

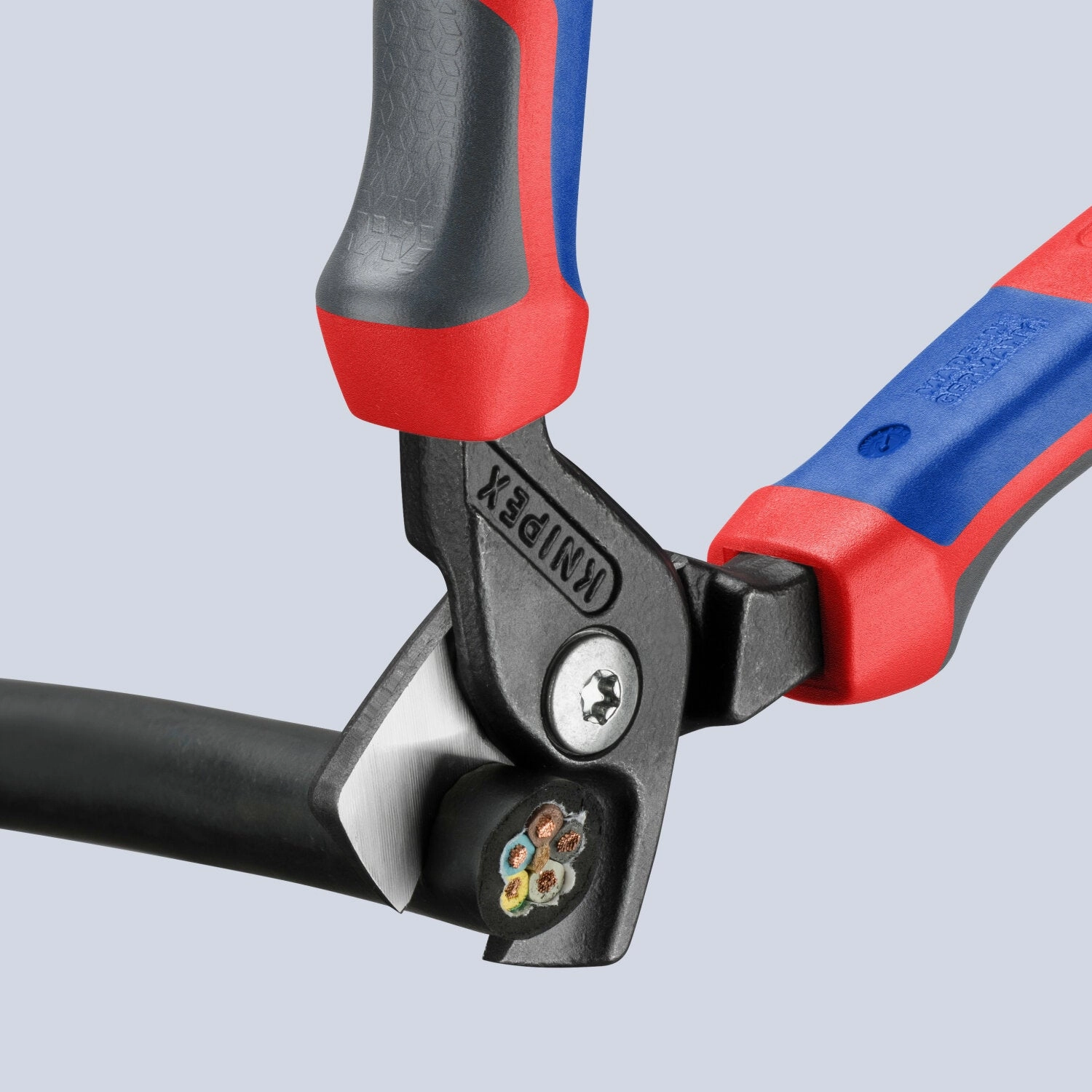

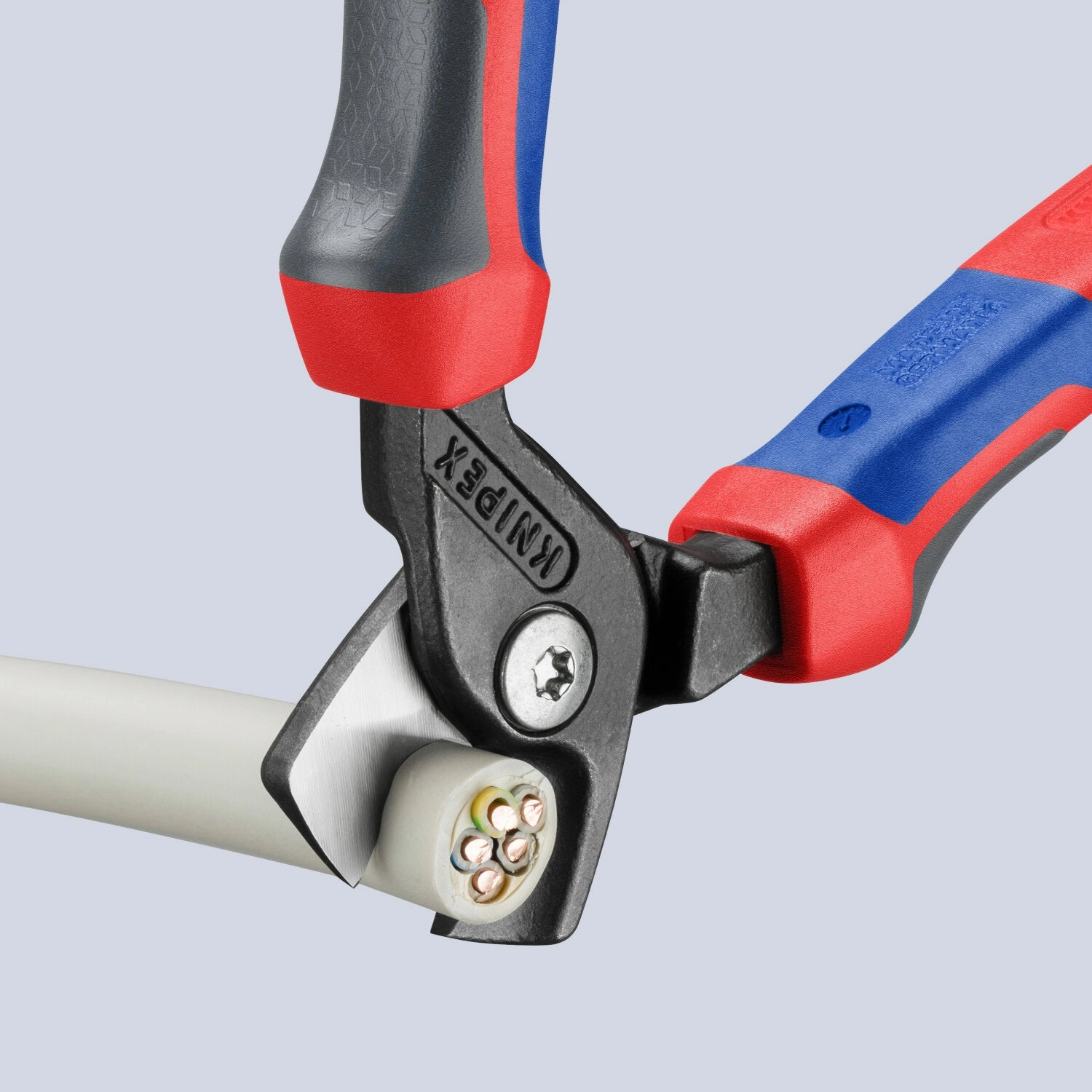

Cuts multi-core stranded copper and aluminum cables, single and multi-stranded wire up to 1/0 AWG
Not suitable for steel wire and hard drawn copper conductors
Easy cutting with one-hand operation
Adjustable bolted joint provides precise and smooth cutting
Pinch guard prevents operators' fingers being pinched
Small, light, strong: comfortable cutting without crushing and just 6 1/4" in length
The cutting edge gradations cut wires one after the other making cutting 40% easier than with standard cable shears of the same length
Cuts multi-core stranded copper and aluminum cables, single and multi-stranded wire up to 1/0 AWG
Not suitable for steel wire and hard drawn copper conductors
Easy cutting with one-hand operation
Adjustable bolted joint provides precise and smooth cutting
Pinch guard prevents operators' fingers being pinched
Size
Joint Type: Bolted
Cutting Edge Shape: Shear
Cutting Edge HRC: 56 HRC
Nominal Length: 6 1/4"
Handle Length: 4 23/64"
Cutting Capacity - CU and AI Conductor: 9/16"
Cutting Edge Shape: Shear
Cutting Edge HRC: 56 HRC
Nominal Length: 6 1/4"
Handle Length: 4 23/64"
Cutting Capacity - CU and AI Conductor: 9/16"
Grip Type

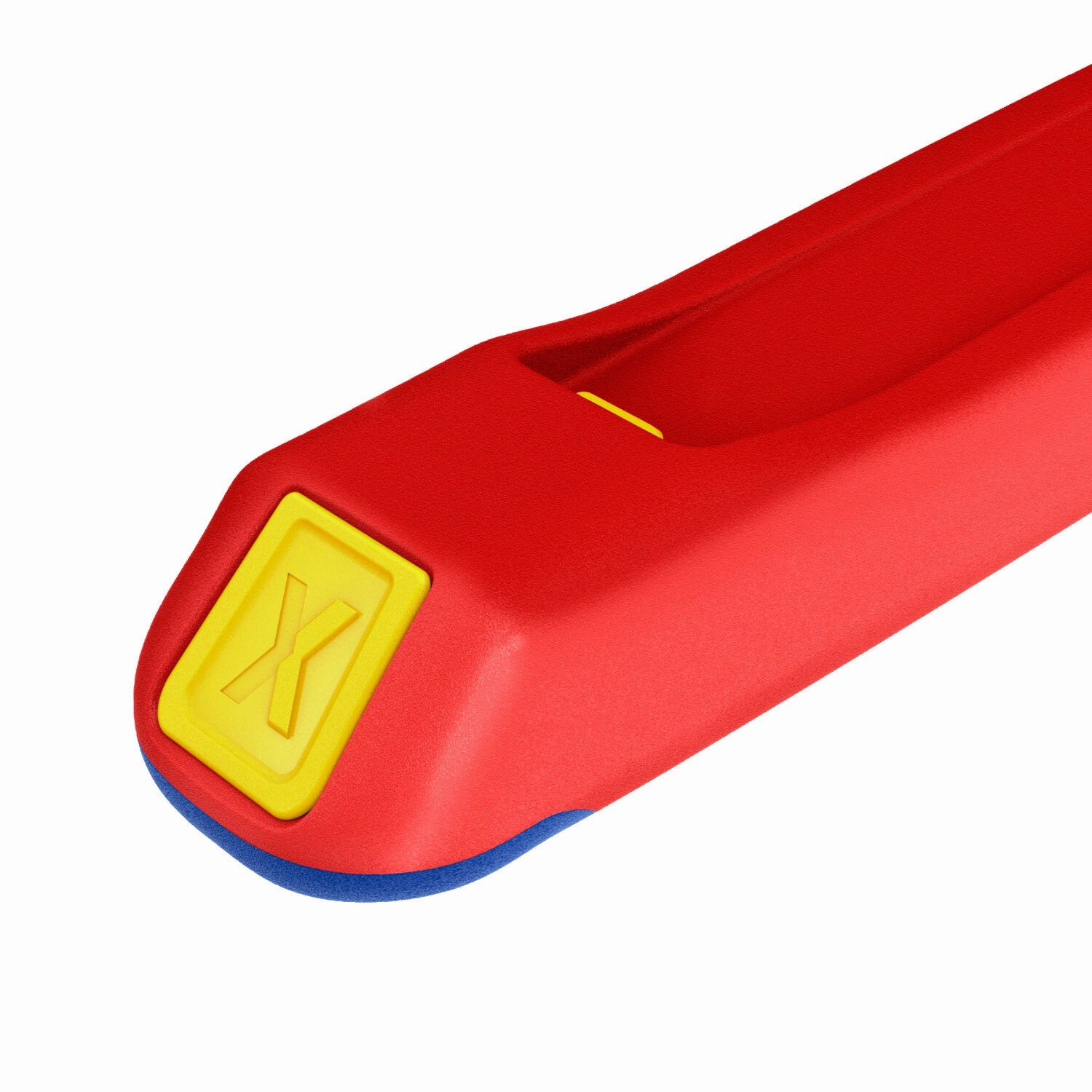

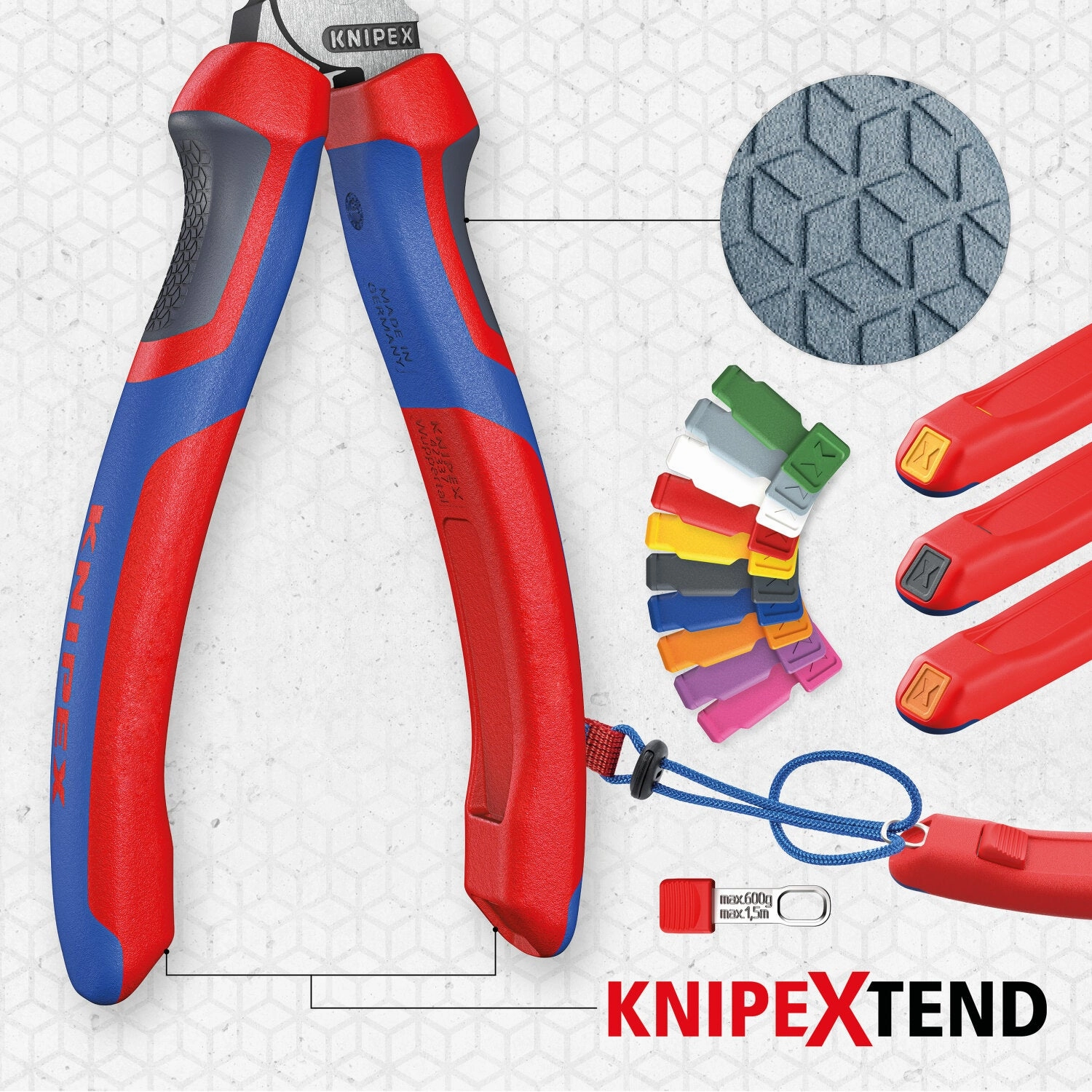

KnipeXtend Comfort Handle
Pliers Type
Cable Shears
