Klein Tools

CL220

Digital Clamp Meter

Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple

Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries

Retail

092644692857

Proposition 65 Warning

Black and Orange

ABS/Electronics

8.45'' (21.5 cm)

3.51'' (8.9 cm)

1.51'' (3.8 cm)

TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature

Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 minutes to conserve battery life

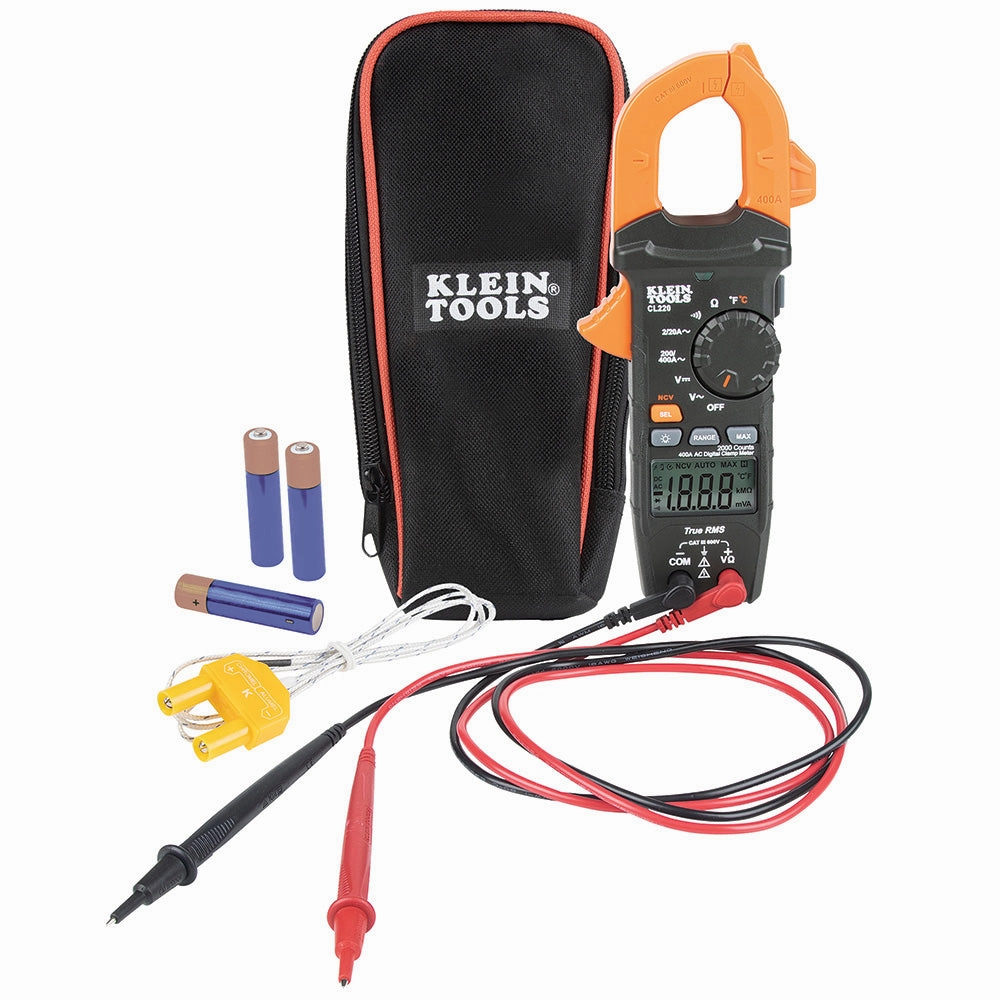

Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries

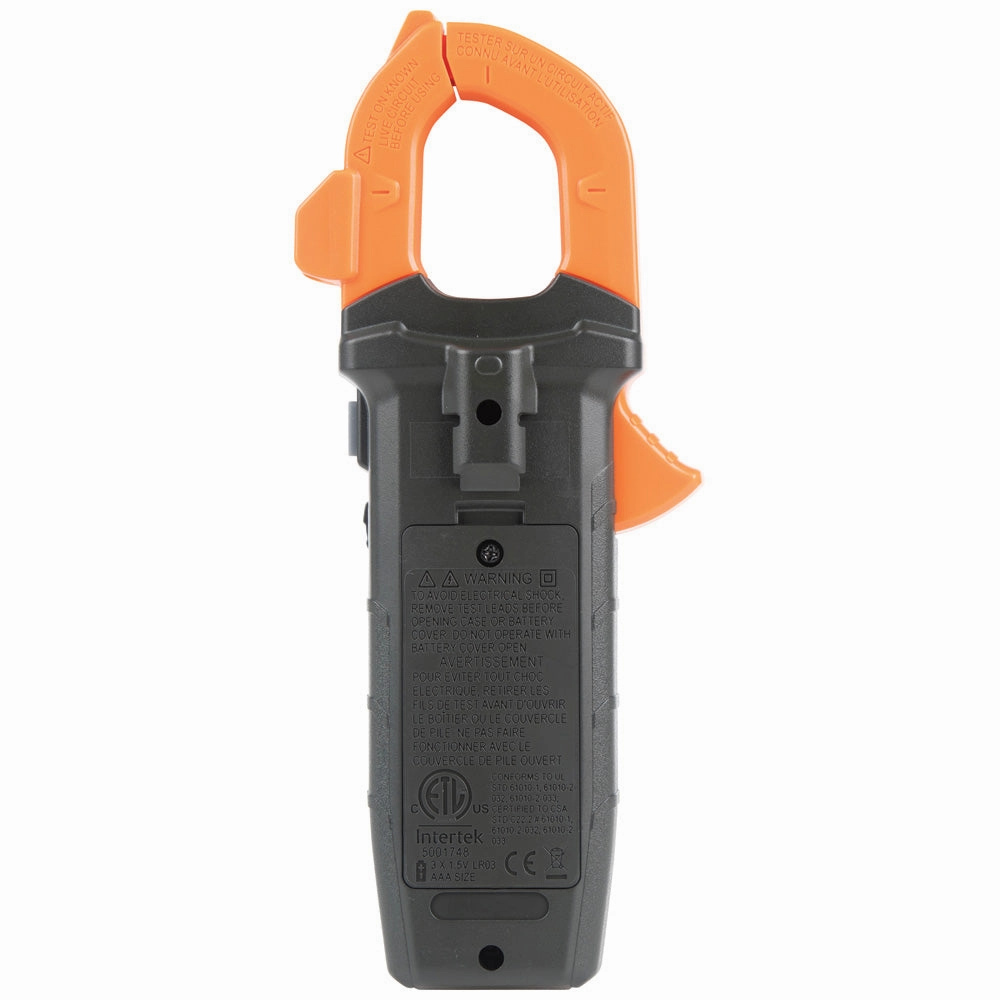

Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

600 V

600 V

400 A AC

600 V AC/DC

20 M

3 x AAA

2000 Count Backlit LCD

-40 - 1832F (-40 - 1000C)
