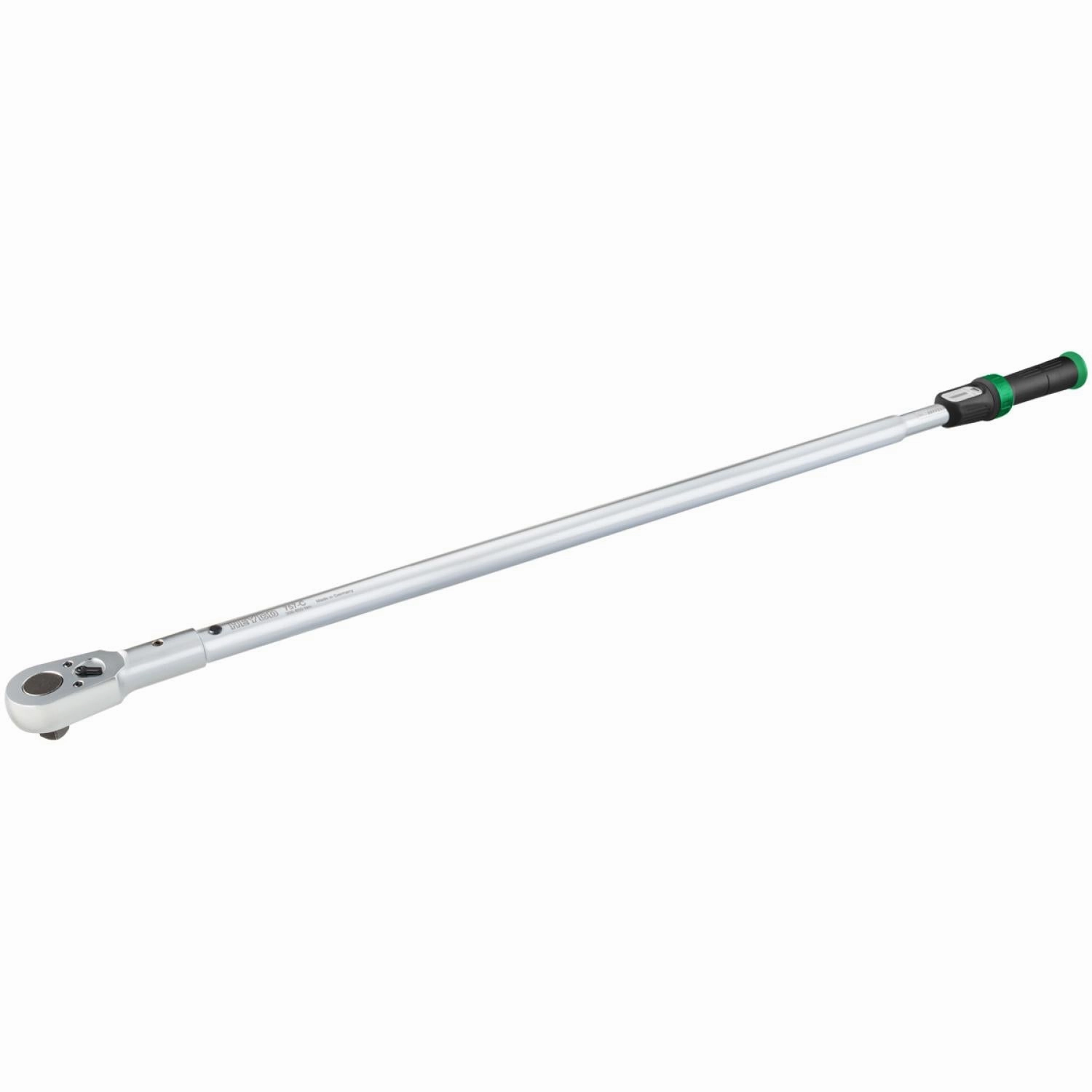

General Information
Brand
Heyco
Part Number
00757000080
Product Type
Torque Wrench
Packaging
Retail
Country of Origin
Germany
UPC
4024089415032
California Residents
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
1270 mm
Weight
6.60 kg
14.55 lb
Color
Silver
Finish
Matted
Material
Chrome Vanadium Steel
Durability
DIN EN ISO 6789, DIN 3120, ISO 1174-1
Details
Grip Type
Ergonomic
Torque Range ft lbs
220 - 620 ft lbs
Torque Range Nm
300 - 850 Nm
Torque Accuracy
3%
Torque Control Type
Handle
Features
Release accuracy tolerance 3% of scale value (in direction of actuation)
Safe torque release: Palpable (close gap release, Audible ("click" sound)
Easy and safe adjustment of the desired torque value by turning the handle
User-friendly reversible ratchet
DIN EN ISO 6789, Square according to DIN 3120, ISO 1174-1
Chrome surface of the tube: matt
Scale housing with double scale: Nm (lbf.ft)
Safety locking of the handle due to blue rotary assembly - no risk of injury!
Indispensable for the torque controlled screw tightening.
Delivery in sturdy Hexa plastic box.
Safe torque release: Palpable (close gap release, Audible ("click" sound)
Easy and safe adjustment of the desired torque value by turning the handle
User-friendly reversible ratchet
DIN EN ISO 6789, Square according to DIN 3120, ISO 1174-1
Chrome surface of the tube: matt
Scale housing with double scale: Nm (lbf.ft)
Safety locking of the handle due to blue rotary assembly - no risk of injury!
Indispensable for the torque controlled screw tightening.
Delivery in sturdy Hexa plastic box.
