Product Details
＋
General Information
Brand
Greenlee
Part Number
ESG25LX230
Product Type

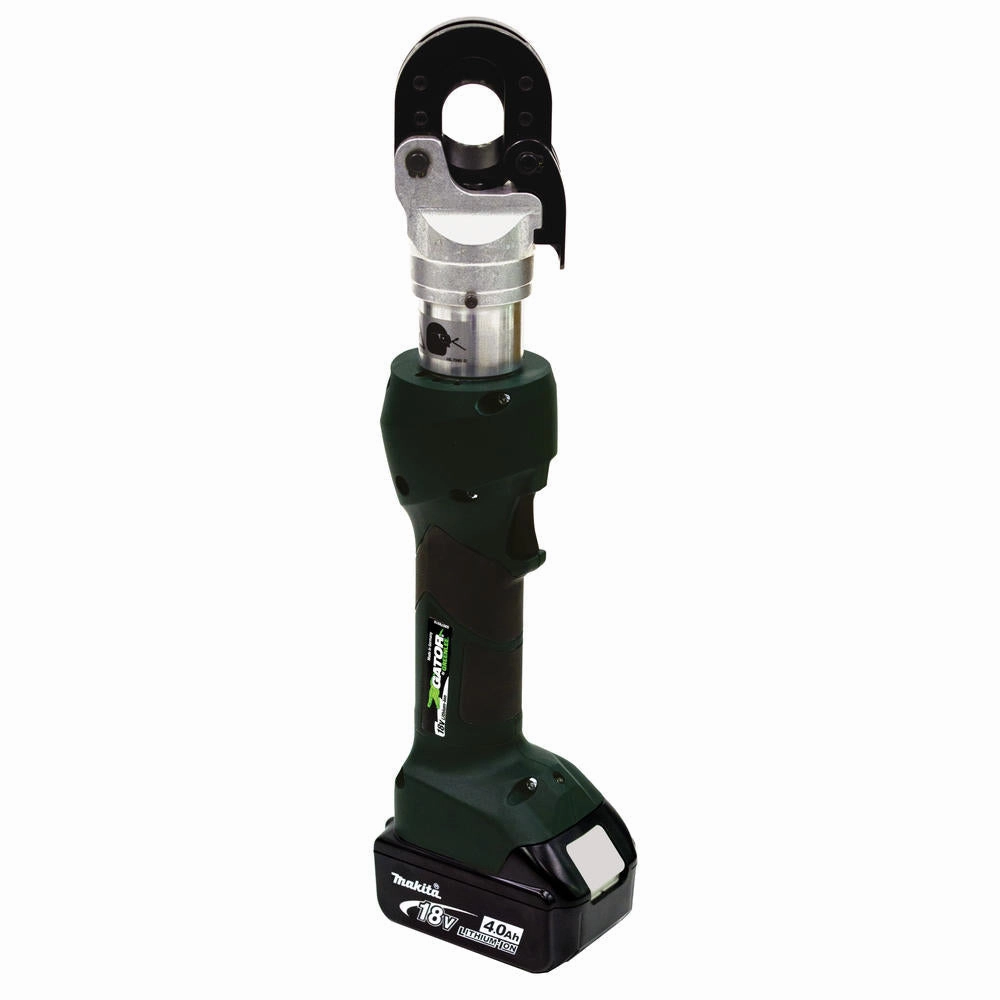

Guillotine Style Cutter
Application
ACSR, Guy Strand, Steel
Packaging
Retail
Country of Origin
Germany
UPC
783310612346
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
15" (381mm)
Weight
0.05 kg
0.12 lb
Details
Size
Jaw: 0.98" (25mm)
Grip Type
In-line style with over molded rubber grip
Features
Equipped with Bluetooth Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Designed primarily to cut distribution ACSR cable
Powerful state of the art 18V lithium ion (Li-ion) battery
LED light provides the operator with the battery charge and tool maintenance status
In-line tool style is light weight and very easy to control
One trigger controls all tool functions
Cutting head rotates 350
Tool automatically retracts when the cutting cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
Uses bio-degradable oil
Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life
Available with 120V, 12V,or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Sub Brand: Gator
Cutting Edge: Hard Metal, Steel
Cutter Head Opening: 1.000" (25.000 mm)
ACSR: 636 KCMIL
Guy Strand (Not EHS): 5/8" (16.000 mm)
Ground Rod: 3/8" (9.000 mm)
Rebar (SCH 60): 3/8" (9.000 mm)
Wire Rope: 1/2" (13.000 mm)Cu
